CLO ENTERPRISE

NEW FEATURES

VERSION DOWNLOAD

KEY FEATURES

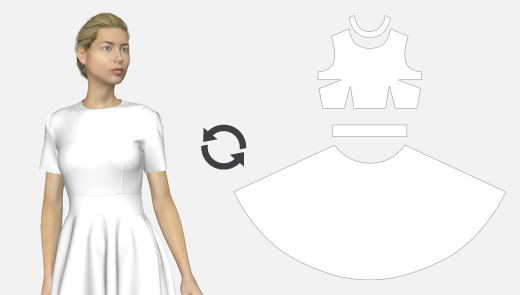

Flattening

Flattening

Draw lines on the Avatar and extract patterns.

SEE MANUAL

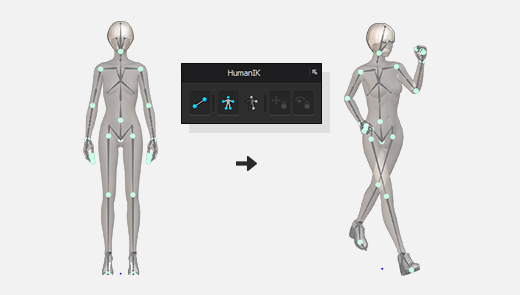

Human IK

Human IK

Avatar joints are organically linked allowing for easier modification of poses.

SEE MANUAL

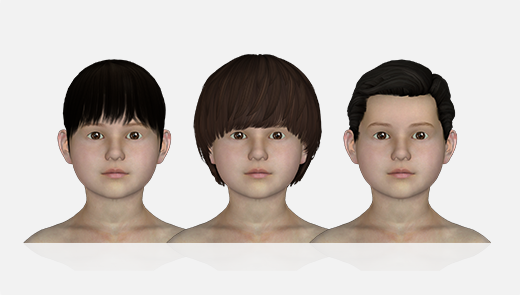

Hair Options for Kid Avatar

Hair Options for Kid Avatar

Three additional default hair options have been added for the Kid Avatar.

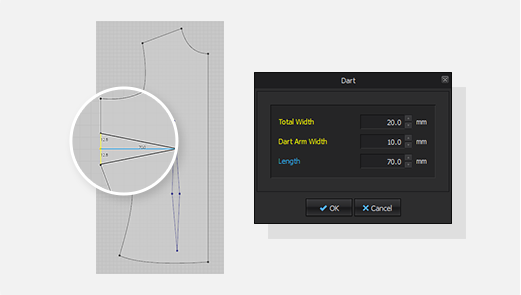

Segment Darts

Segment Darts

Add and modify Darts added along pattern outlines.

SEE MANUAL

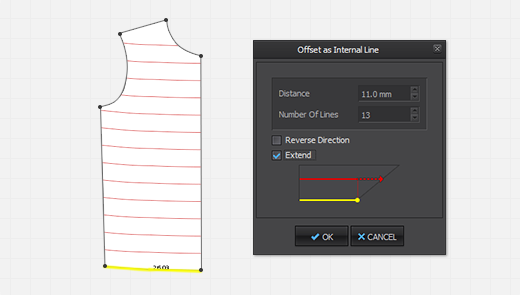

Offset as Internal Line along Slope

Offset as Internal Line along Slope

Create Internal Lines between two segments following the slope of the pattern.

SEE MANUAL

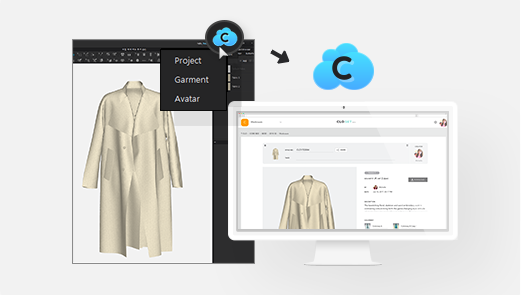

File Sharing

File Sharing

Upload 3D files and share them easily with others, using CLOSET.

SEE MANUAL

FILE

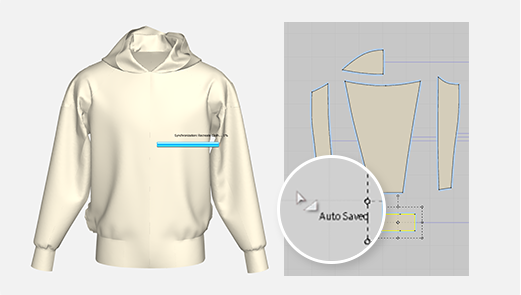

Auto Save Display

Auto Save Display

Visually confirm when files are auto saved.

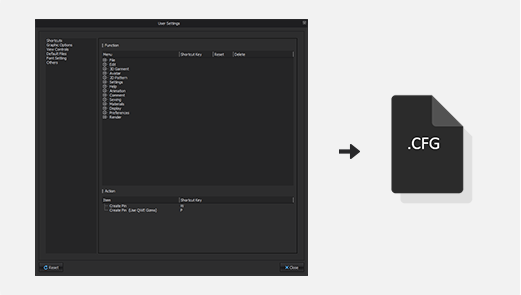

Save User Setting as Configuration File

Save User Setting as Configuration File

Save User Settings such as Language, Measurement Units, and Shortcuts as a configuration file that can be applied to program updates.

SEE MANUAL
Automatic Resolution for 3D Snapshot

Automatic Resolution for 3D Snapshot

The image resolution (ppi) will automatically adjust depending on the selected paper size for optimal printing results.

SEE MANUAL (3D snapshot)
SEE MANUAL (Render)

3D

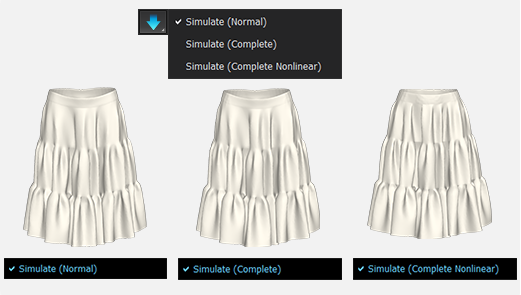

Simulation Presets as Tools

Simulation Presets as Tools

Simulation Presets have been added to the 3D toolbar.

SEE MANUAL

2D

Rotation Angle Input

Rotation Angle Input

Rotate Patterns, Internal Shapes, and Graphics by inputting a specific angle.

SEE MANUAL (Patterns/Internal Shapes)
SEE MANUAL (Graphic)

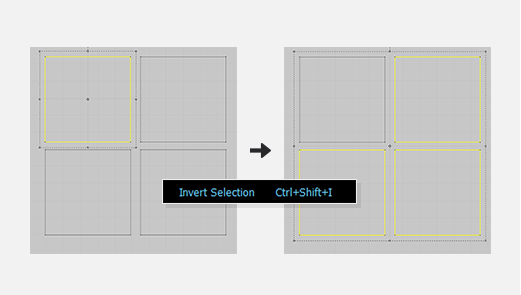

Invert Selection

Invert Selection

Invert the pattern selection and choose the patterns currently not selected.

SEE MANUAL

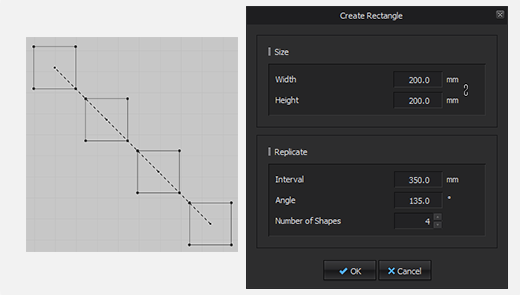

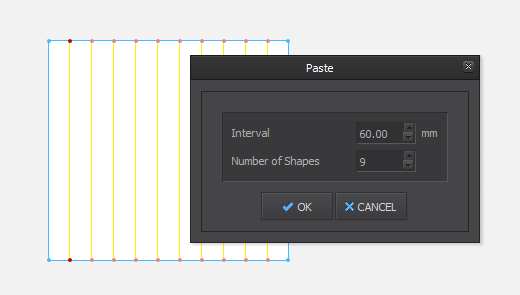

Create Multiple Patterns or Internal Shapes and Input Intervals

Create Multiple Patterns or Internal Shapes and Input Intervals

Designate the number of shapes and input the interval when creating Patterns or Internal Lines.

SEE MANUAL

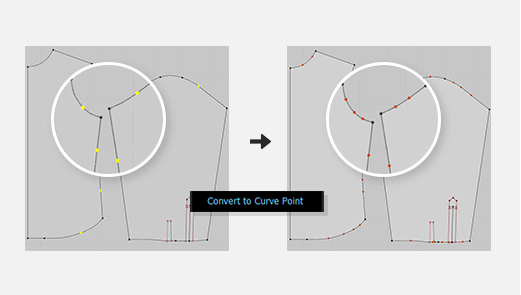

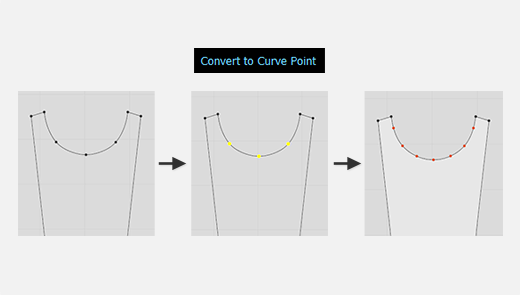

Convert Multiple Segments Points to Curve Points

Convert Multiple Segments Points to Curve Points

Convert multiple Segment Points on Pattern Outlines or Internal Shapes to Curve Points.

SEE MANUAL

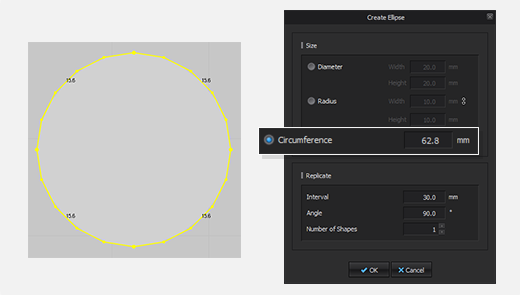

Create Ellipse with Circumference

Create Ellipse with Circumference

Enter a circumference value to create Ellipses.

SEE MANUAL (Circle Pattern)
SEE MANUAL (Internal Circle)

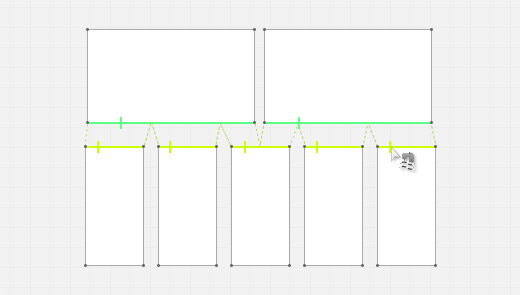

Improvements to Add Point/Split Line

Improvements to Add Point/Split Line

Designate the number of segments with the Split by Length menu.

SEE MANUAL
Copy Patterns, Internal Lines and Baselines

Copy Patterns, Internal Lines and Baselines

Copy any Internal Lines and Baselines when copying as Pattern.

Color Name Input

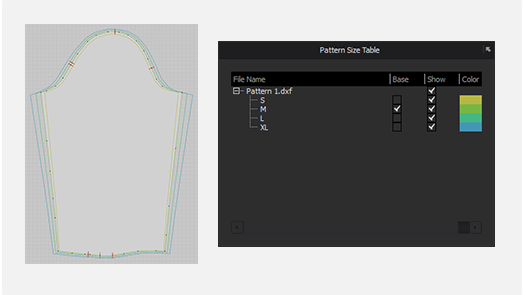

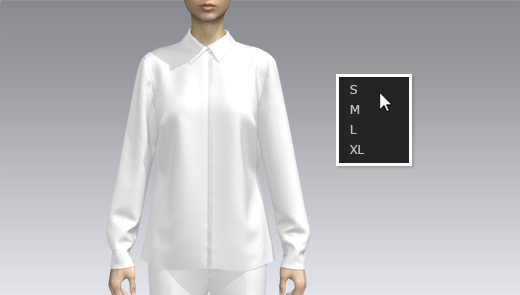

Show/Hide Grading Improvements

Change the color and toggle information on/off for segments of graded patterns.

MATERIALS

Set Sewing Fold Angles Between the Zipper and Pattern

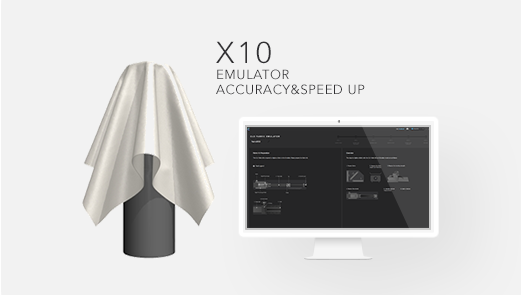

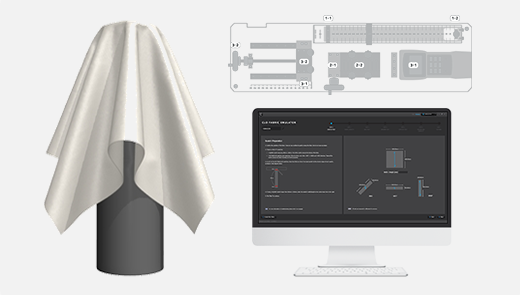

Emulator Enhancements

Emulator accuracy and speed has been improved by tenfold.

Additional Buttons

Color Name Input

Color names for Fabrics, Buttons, and Topstitches can be entered within the Property Editor.

SEE MANUAL
Duplicate as Button/Buttonhole to Symmetric Pattern

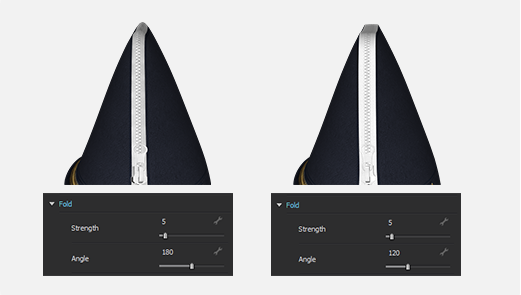

Set Sewing Fold Angles Between the Zipper and Pattern

Express flattened zippers by adjusting the Fold Angle for sewing between the Zipper and Pattern.

SEE MANUAL

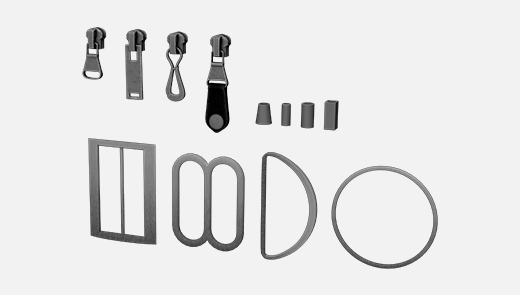

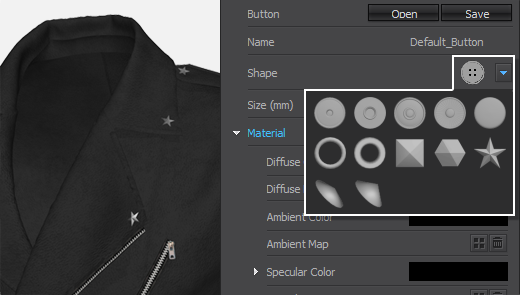

Two new Button styles have been added.

Additional Buttons

Two new Button styles have been added.

Set Sewing Fold Angles Between the Zipper and Pattern

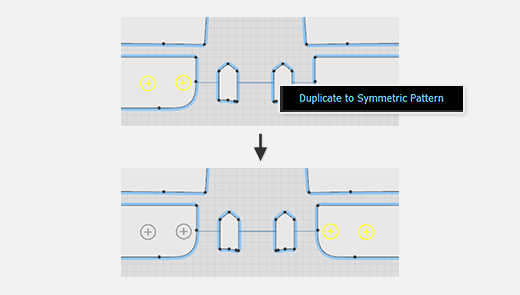

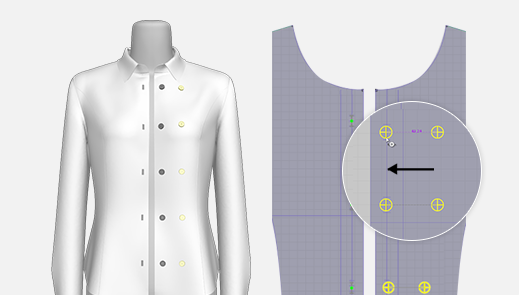

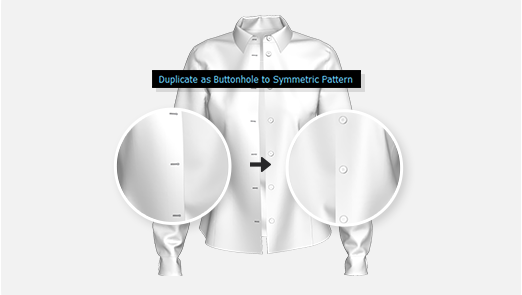

Duplicate as Button/Buttonhole to Symmetric Pattern

Duplicate Buttons as Buttonholes, or Buttonholes as Buttons, to its Symmetric Pattern.

SEE MANUAL

AVATAR

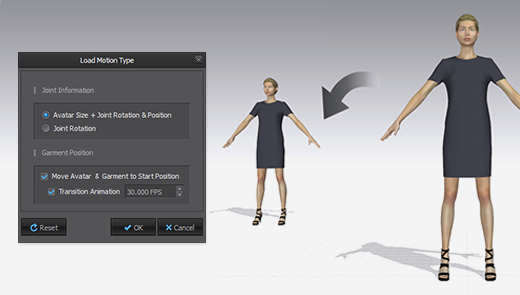

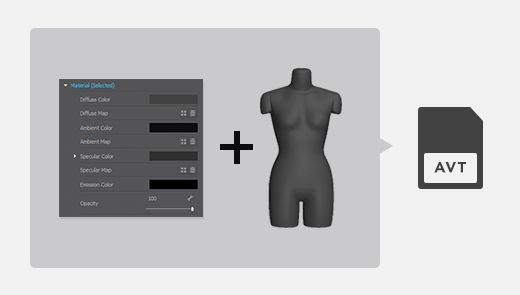

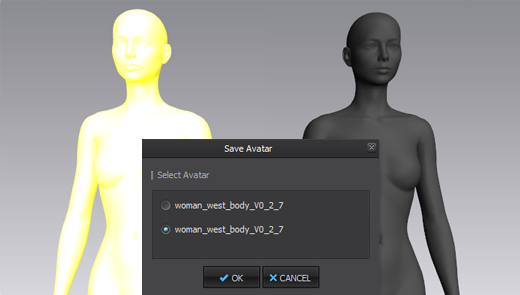

Morph Target with AVT Files

Morph Target with AVT Files

Previously reserved for OBJ files, Morph Target with AVT files to change the Avatar Pose or shape.

SEE MANUAL

KEY FEATURES

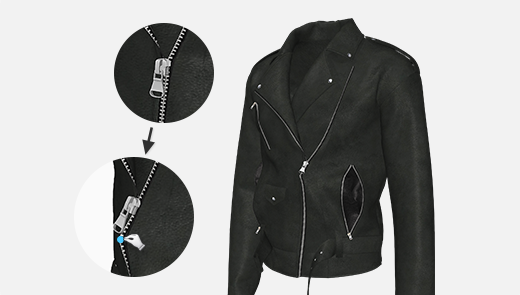

Zipper

Zipper

Add zipper details quickly and easily.

SEE MANUAL

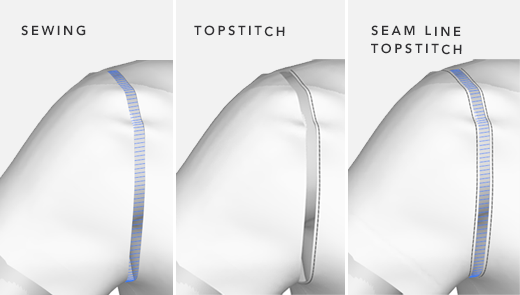

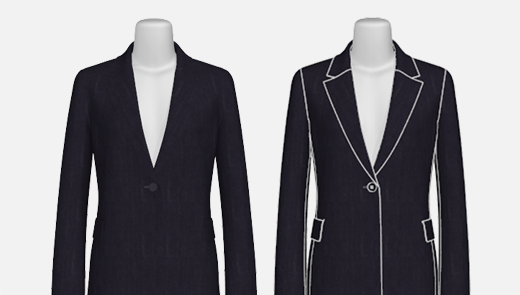

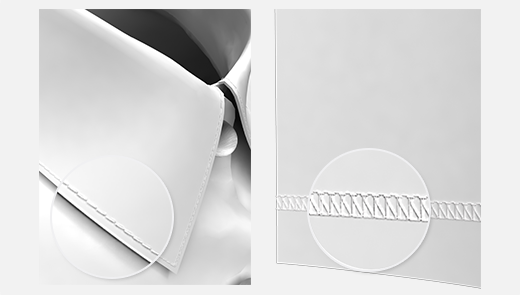

Realistic Topstitches (OBJ)

Realistic Topstitches (OBJ)

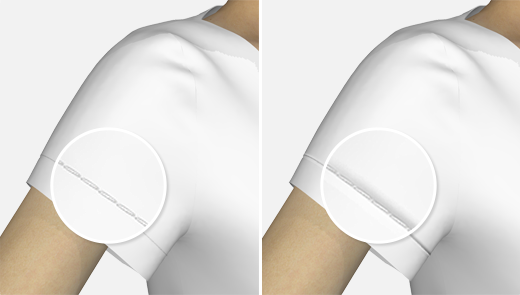

Apply topstitches as OBJ to express them more realistically.

SEE MANUAL

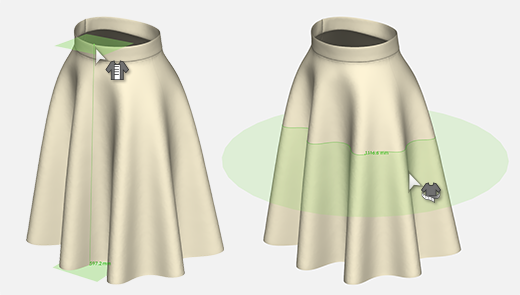

Circumference Garment Measure

Circumference
Garment Measure

Obtain height and circumference measurements of the 3D Garment.

SEE MANUAL

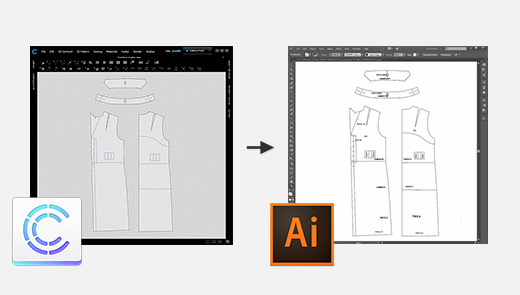

AI Pattern Export

AI Pattern Export

Export patterns in AI file format from CLO.

SEE MANUAL
AI Import of Patterns with Prints/Graphics Applied

AI Import of Patterns
with Prints/Graphics
Applied

Import patterns along with their respective prints and graphics together.

SEE MANUAL
Rendered Turntable Videos

Rendered Turntable Videos

Record rendered turntable videos.

SEE MANUAL

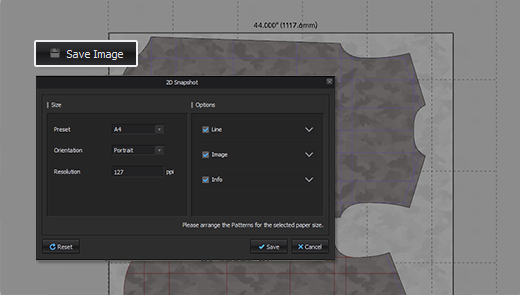

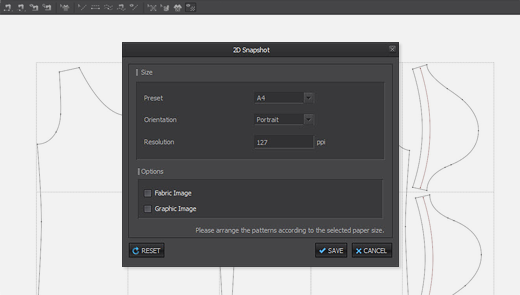

Print Layout 2D Snapshot

Print Layout 2D
Snapshot

Save images of how patterns are arranged in Print Layout mode.

SEE MANUAL

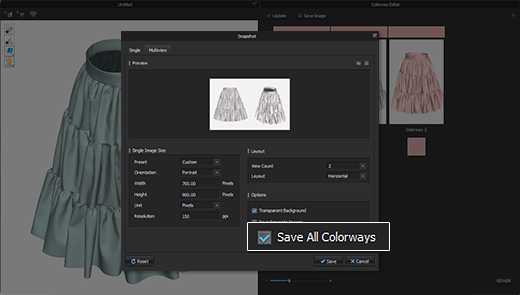

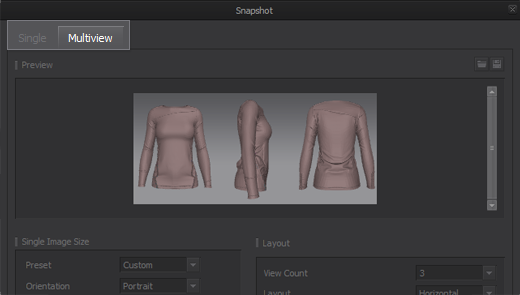

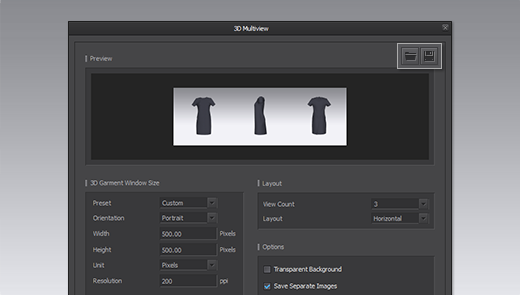

Colorway Multivew Snapshot

Colorway Multivew
Snapshot

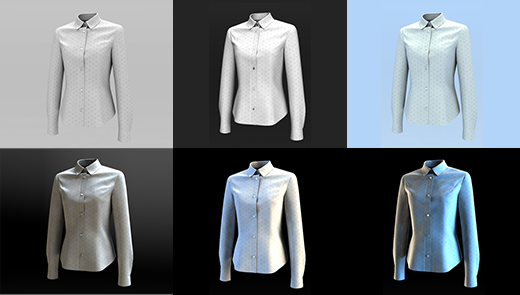

Save various views of the 3D Garment for all colorways at one time.

SEE MANUAL

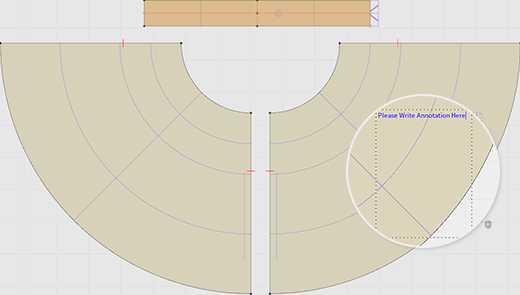

2D Pattern Annotations

2D Pattern
Annotations

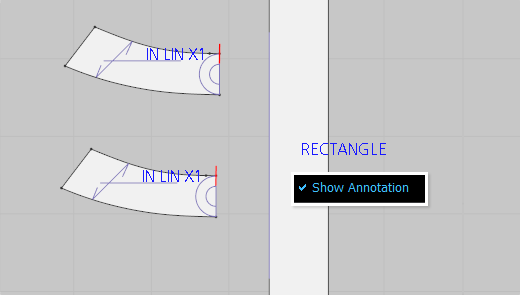

Insert annotations on patterns in the 2D Pattern window as needed.

SEE MANUAL

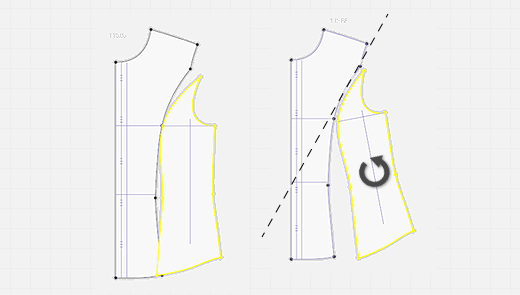

Transform Point/Segment

Transform
Point/Segment

Rotate and scale patterns in relation to selected points/segments.

SEE MANUAL

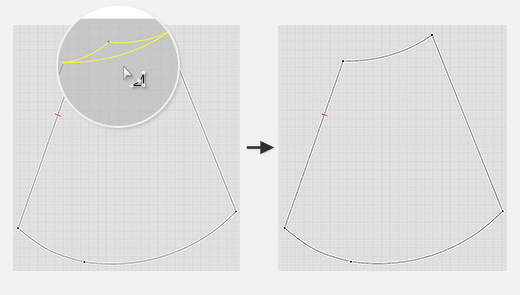

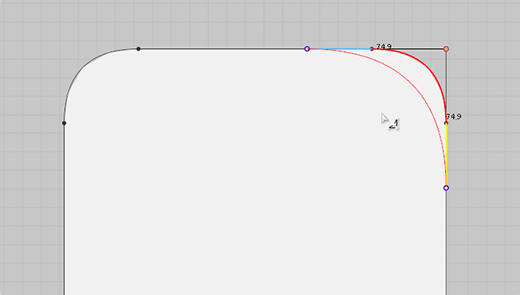

Create Smooth Curve Replace as Pattern Outline

Create Smooth Curve /
Replace as Pattern
Outline

Modify pattern outlines into smooth curves.

SEE MANUAL (Create Smooth Curve)
SEE MANUAL (Replace as Pattern Outline)

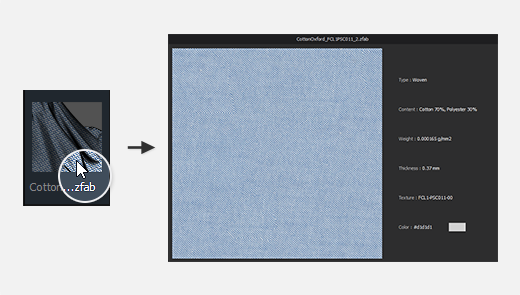

Fabric Information

Fabric Information

Preview fabric information in the Library window.

SEE MANUAL

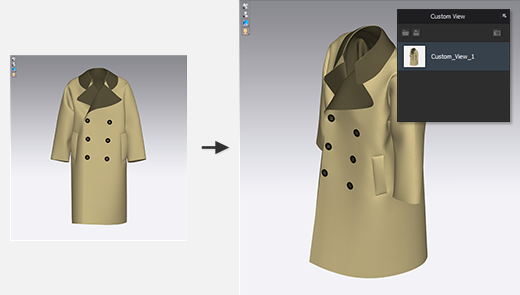

Custom View

Custom View

Save and open customized views from the 3D Garment window.

SEE MANUAL
Animation Video Capture

Animation Video
Capture

Capture videos of recorded motions in Animation mode.

SEE MANUAL

FILE

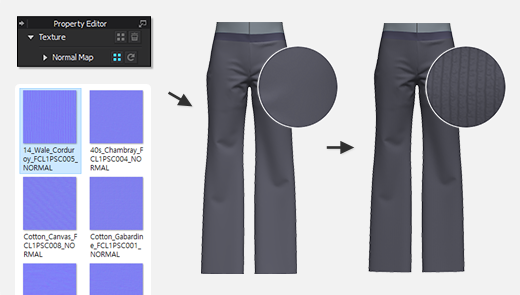

Fabric Normal Maps

Fabric Normal Maps

Access achromatic normal maps from the Asset Folder.

3D

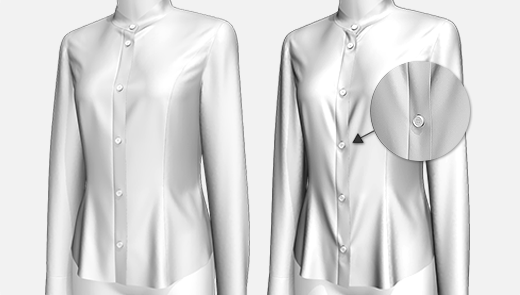

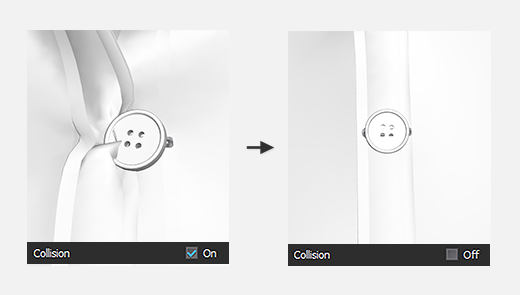

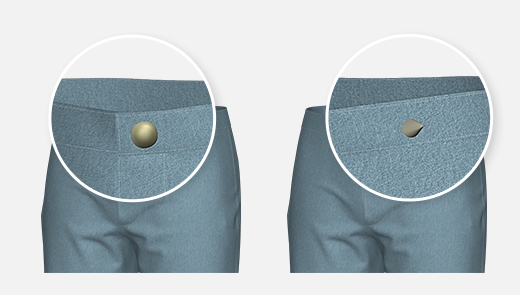

Button Collision Detection On/Off

Button Collision
Detection On/Off

Turn off pattern collision detection for Buttons, as needed.

SEE MANUAL
Duplicate Graphics to Symmetric Patterns

Duplicate Buttons to
Symmetric Patterns

Duplicate Buttons to symmetric Patterns in one step.

SEE MANUAL

2D

2D Tack

2D Tack

Create and modify tacks in the 2D Pattern window with the Tack tool.

SEE MANUAL

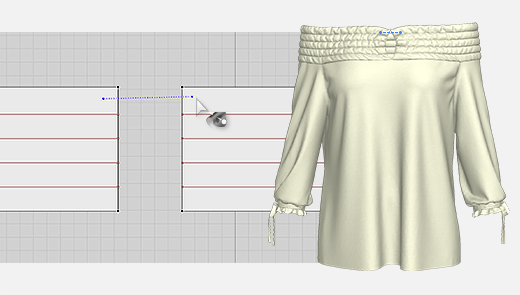

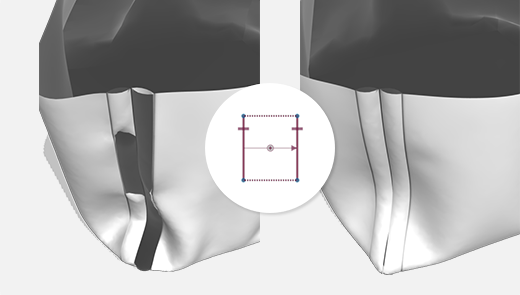

2D Pleats

2D Pleats
Improvement

Use the option to adjust the fold angle of sets of two internal lines with the Pleat tool.

SEE MANUAL

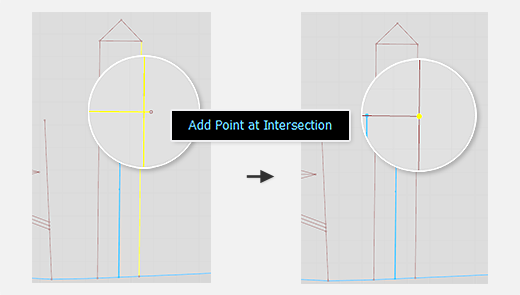

Add Point to Intersection

Add Point to Intersection

Add segment points to where internal lines intersect.

SEE MANUAL
Polygon Lasso

Polygon Lasso
Selection

Select patterns, sewing lines, topstitches, and puckering with more freedom.

SEE MANUAL

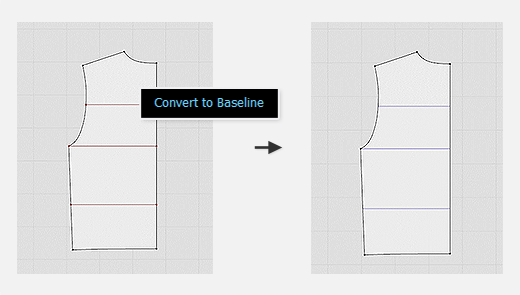

Convert to Baseline

Convert to Baseline

Convert internal lines to baselines that can serve as guides for patterns.

SEE MANUAL

KEY FEATURES

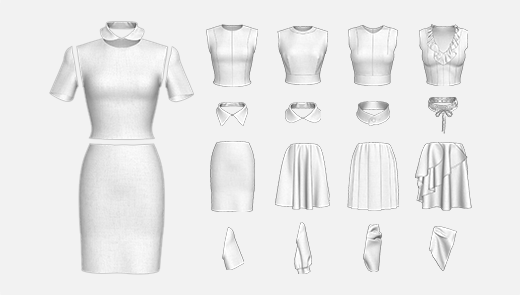

Modular MODE

Modular MODE

Combine or swap out ready-made Block Components to create designs with speed and flexibility.

SEE MANUAL

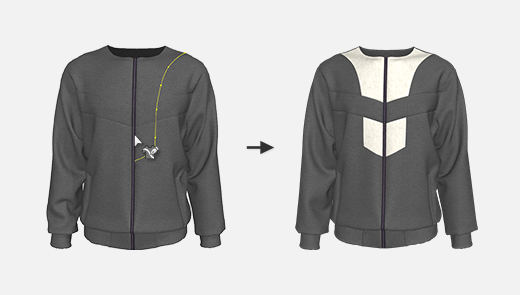

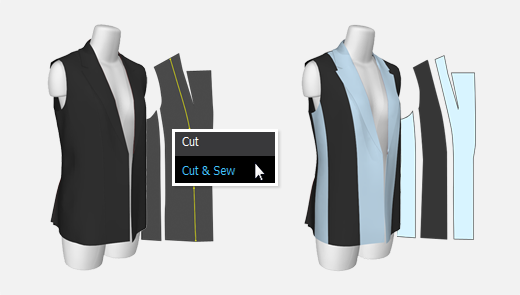

3D Line

3D Line

Draw lines on the 3D Garment and cut the 2D Patterns accordingly.

SEE MANUAL

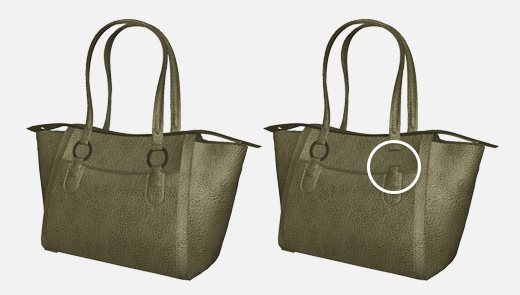

Glue

Glue

Attach 3D trims to the 3D Garment and actively Simulate them.

SEE MANUAL

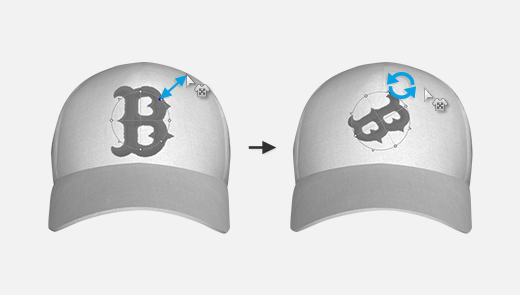

Transform Graphic (3D)

Transform Graphic (3D)

Scale, move, and rotate Graphics in the 3D Garment window.

SEE MANUAL

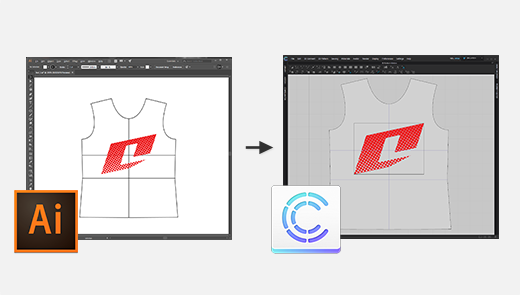

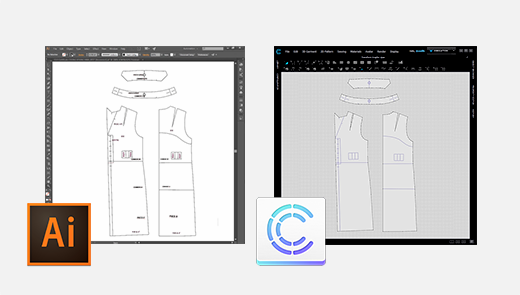

Import AI Files (Patterns/Graphics)

Import AI Files (Patterns/Graphics)

Import Adobe Illustrator files as Patterns and Graphics.

SEE MANUAL

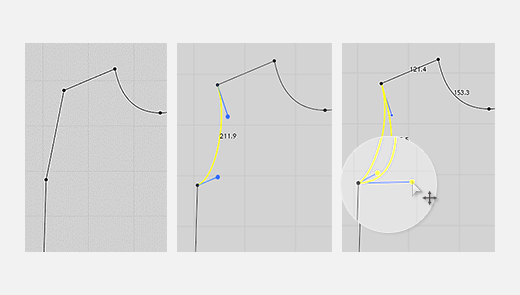

AI Curve (Bézier Curve)

AI Curve (Bézier Curve)

Create and modify Patterns similarly to how shapes are created in Adobe Illustrator.

SEE MANUAL

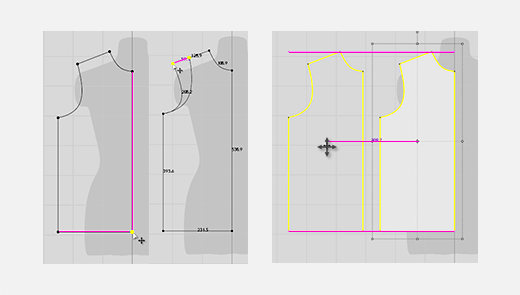

Smart Guides

Smart Guides

Arrange and create Patterns more accurately within the 2D window using surrounding points as guides.

SEE MANUAL
Instance

Instance

Simultaneously modify Patterns cloned as instances.

SEE MANUAL

3D

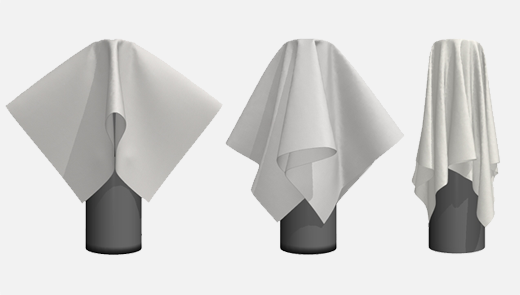

Nonlinear Simulation

Nonlinear Simulation

Simulate the stretch of fabrics in the 3D environment more accurately.

SEE MANUAL

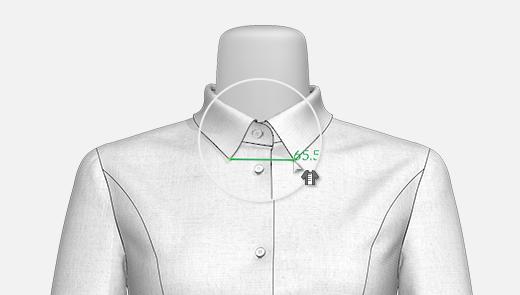

Linear Garment Measure

Linear Garment Measure

Take linear measurements of the Garment in the 3D environment.

SEE MANUAL

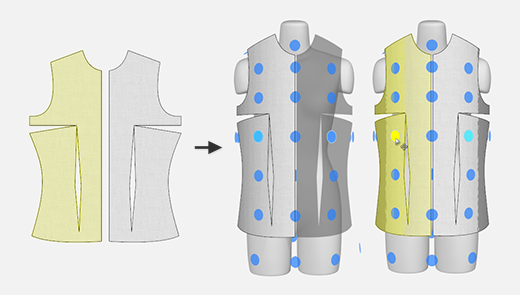

Symmetric Arrangement

Symmetric Arrangement

Arrange Patterns symmetrically in the 3D Garment window.

SEE MANUAL

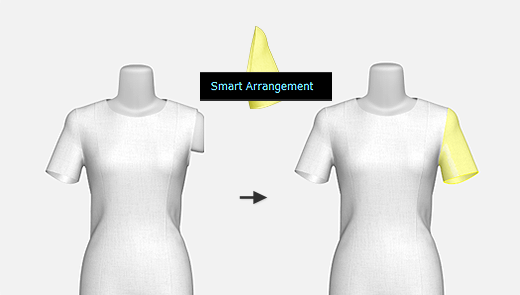

Smart Arrangement

Smart Arrangement

Maintains the 3D drape of a Pattern while easily arranging it to where it is sewn.

SEE MANUAL

FILE

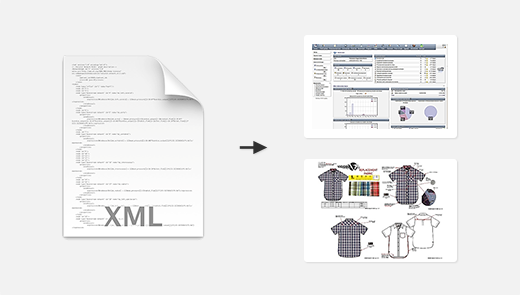

BOM Export

BOM Export

Export information related to the 3D Garment as text (XML) and image (PNG) files.

SEE MANUAL
Default Fabrics

Default Fabrics

Fabrics are provided by default to provide realistic texture and physical property expression.

Default Garment Trims

Default Garment Trims

Commonly used garment trims are offered by default.

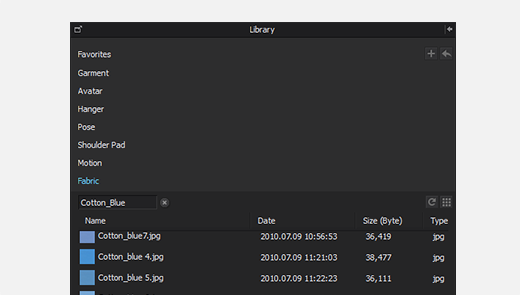

Library Sort, Search, and View

Library Sort, Search, and View

Locate files quickly and efficiently within the Library.

SEE MANUAL

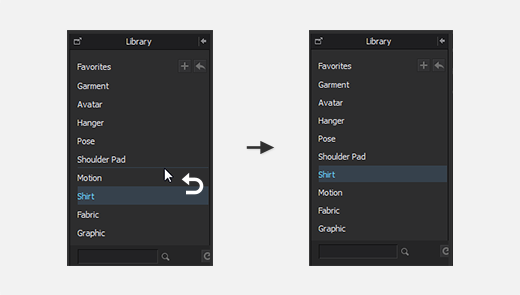

Library Folder Order

Library Folder Order

Change the order of the Favorites folders within the Library freely.

SEE MANUAL

2D

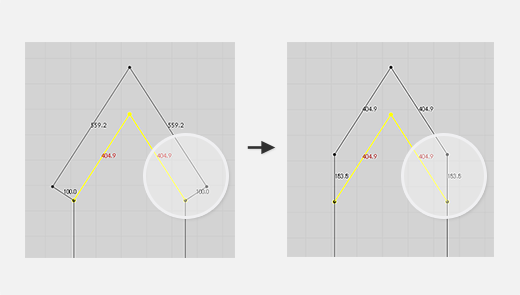

Offset Pattern Outline Options

Offset Pattern Outline Options

Extend the Pattern outline while matching the angles of the segments on either side.

SEE MANUAL
Match Up

Match Up

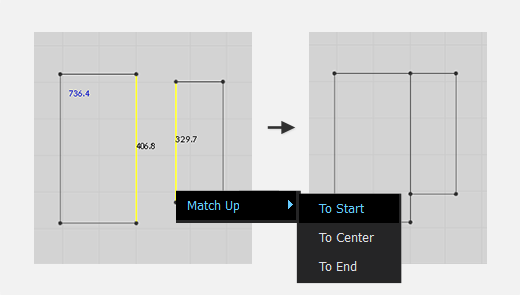

Match up Patterns along selected segments or points in the 2D environment.

SEE MANUAL

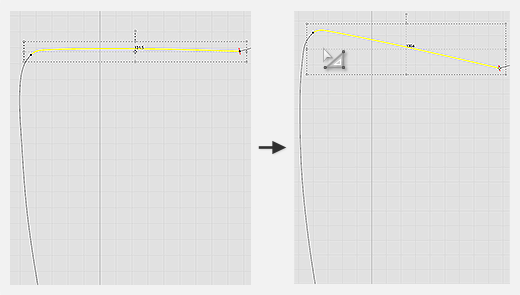

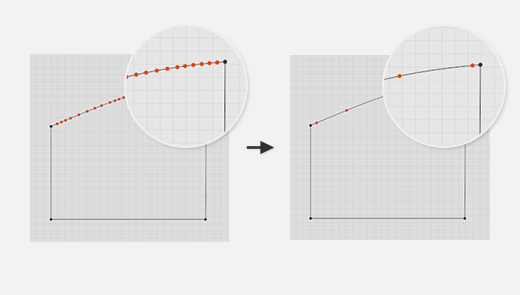

Optimize Curve Points

Optimize Curve Points

Reduce and optimize the number of points on a curved line.

SEE MANUAL
Convert Multiple Segment Points to Curve Points

Convert Multiple Segment Points to Curve Points

Select multiple segment points at once, then convert them to curve points.

SEE MANUAL

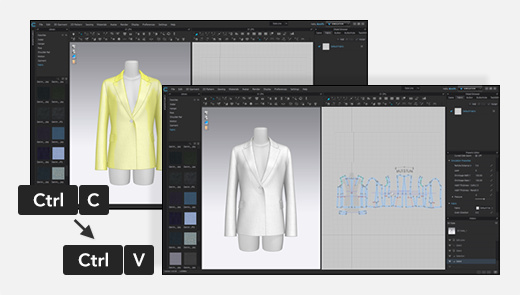

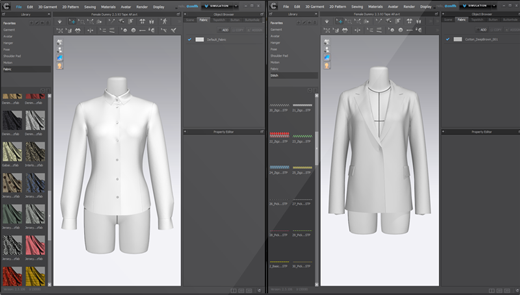

Copy & Paste from Different Program Windows

Copy & Paste from Different Program Windows

Copy & paste elements between various Garment and Project files when multiple program windows are open.

SEE MANUAL

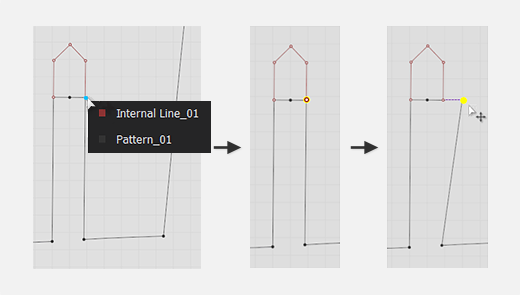

Overlapping Points/Lines Selection UI

Overlapping Points/Lines Selection UI

Select the desired point when multiple points overlap.

SEE MANUAL

KEY FEATURES

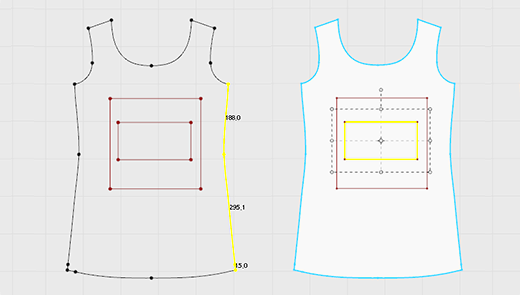

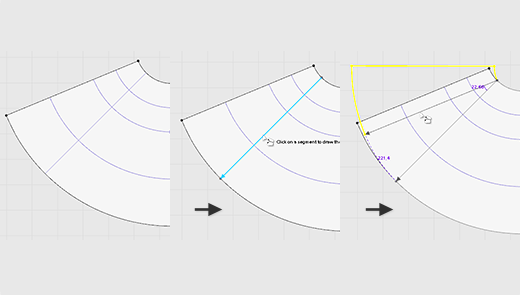

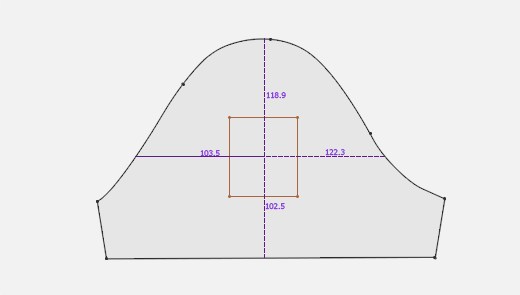

2D Measure

2D Measure

Input and view distances from the Pattern outline when creating Internal Shapes, Buttons, and Graphics for accurate placement.

SEE MANUAL

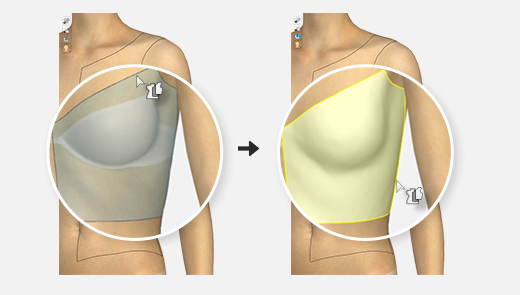

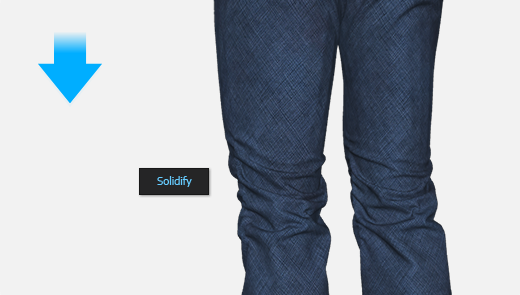

Solidify

Solidify

Maintain the folds and wrinkles of any Pattern piece even with Simulation activated.

SEE MANUAL

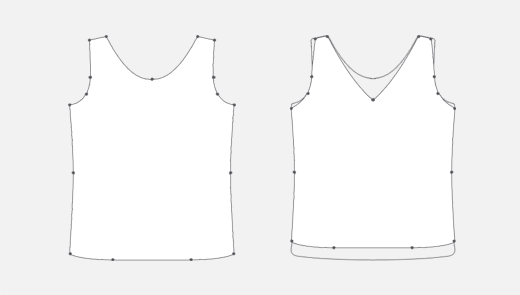

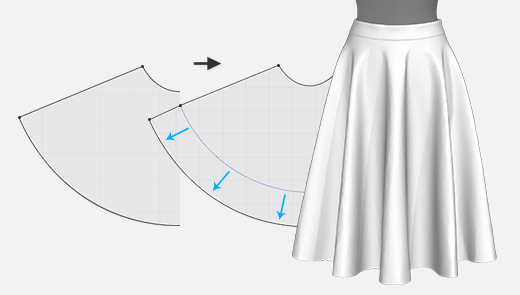

Offset Pattern Outline

Offset Pattern
Outline

Extend the Pattern outline while maintaining its original shape.

SEE MANUAL

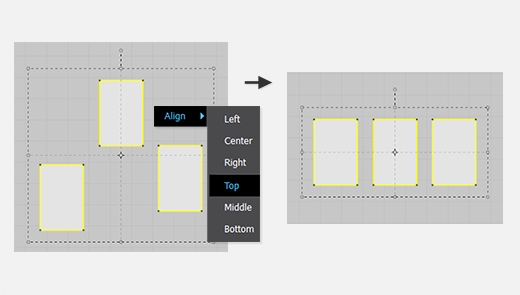

Align Distribute

Align & Distribute

Align or distribute Patterns, segments, or points based on reference points/lines or input values for spacing.

SEE MANUAL (Distribute)
SEE MANUAL (Align Pattern)

3D

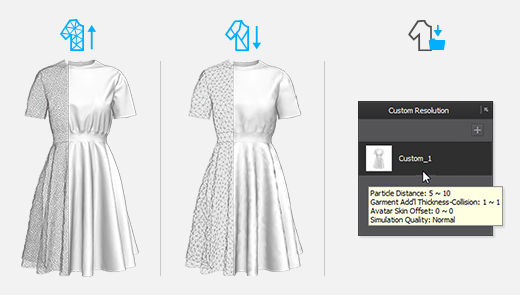

HD Garment

HD Garment

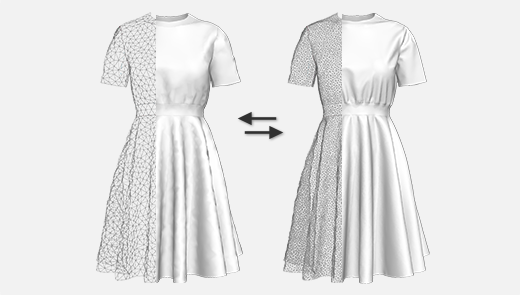

Select among the Hi-Res Garment, Low-Res Garment, and Custom tools to easily change the garment resolution as needed.

SEE MANUAL (High/Low Resolution Garment)
SEE MANUAL (Custom Resolution Garment)
Style Line Silhouette

Style Line
Silhouette

Show or hide the Garment silhouette when utilizing the Style Line function.

SEE MANUAL

2D

Pattern Selection

Pattern Selection

Select Pattern points and segments with the Edit Pattern tool, while using the Transform Pattern tool to easily select individual Internal Shapes that overlap.

SEE MANUAL

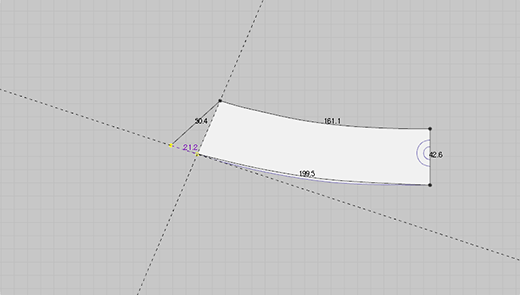

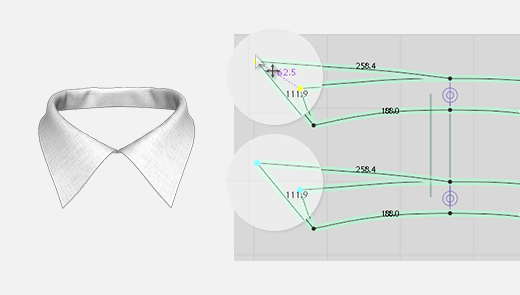

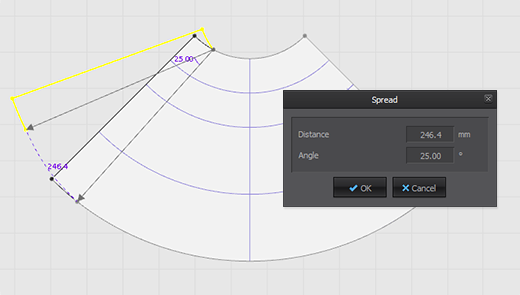

Slash & Spread Angle and Distance Input

Slash & Spread
Angle and Distance Input

Input angle and distance values to Spread Patterns accurately.

SEE MANUAL
Slash & Spread Slash Internal Lines and Baselines

Slash & Spread
Slash Internal Lines and Baselines

Use existing Internal Lines or Baselines to Slash & Spread Patterns.

SEE MANUAL

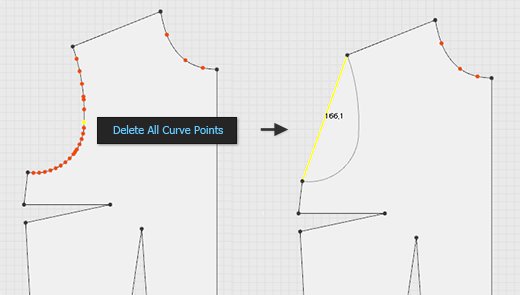

Delete All Curve Points

Delete All Curve
Points

Easily delete all Curve Points in one go to convert curved segments to straight segments.

SEE MANUAL

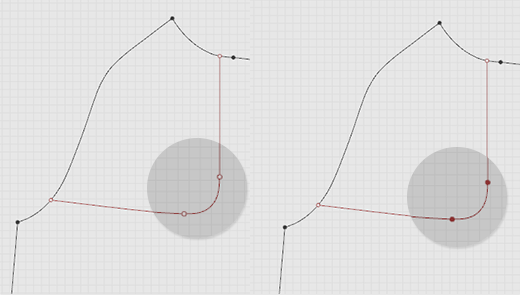

Internal Point UI

Internal Point UI

Rely on visual cues to determine if internal points are connected or disconnected.

SEE MANUAL

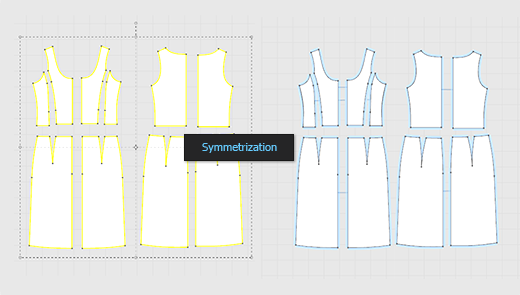

Symmetrization

Symmetrization

Apply Symmetry to multiple pairs of Patterns at once.

SEE MANUAL

MATERIALS

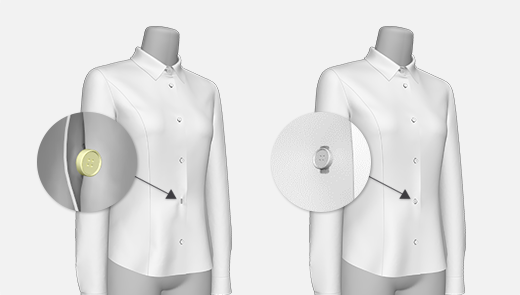

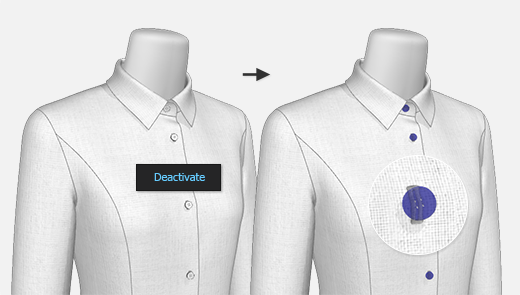

Buttons Deactivate Activate

Buttons
Deactivate /
Activate

Deactivate or Activate Buttons based on the need.

SEE MANUAL

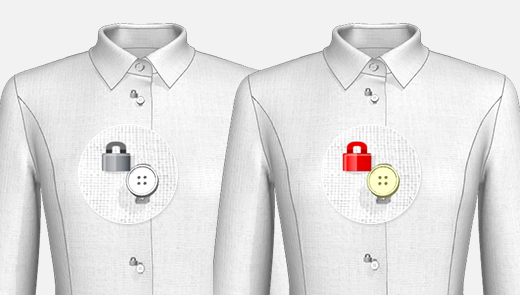

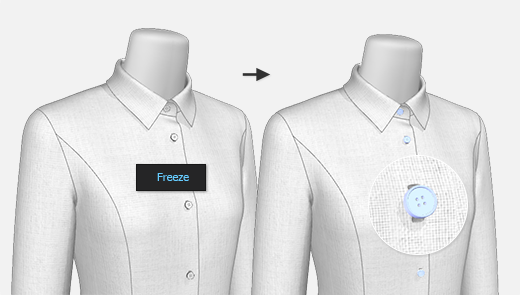

Buttons Freeze / Unfreeze

Buttons
Freeze / Unfreeze

Freeze or Unfreeze Buttons based on the need.

SEE MANUAL
Buttons and Buttonholes Move

Buttons and Buttonholes
Move

Specify the distance when moving Buttons or Buttonholes for accurate placement.

SEE MANUAL (BUTTON)
SEE MANUAL (BUTTONHOLE)
Buttonhole Bind Position

Buttonhole Bind Position

Determine the Bind Position for individual Buttonholes.

SEE MANUAL
Fasten Button UI

Fasten Button UI

Visually confirm if Buttons have been fastened properly.

SEE MANUAL
Lock All Graphics

Lock All
Graphics

Easily select Patterns that have large Graphics applied using the Lock All Graphics function.

SEE MANUAL
Save Surface Textures

Save Surface
Textures

Crop and save Surface Textures to the desired size.

SEE MANUAL

AVATAR

Delete Avatar

Delete Avatar

Delete individual Avatars from the 3D environment.

SEE MANUAL
Avatar Properties

Avatar Properties

Save Avatars along with any changes made in the Avatar Property Editor.

SEE MANUAL

RENDER

Render Multiview Snapshot

Render Multiview Snapshot

Generate and save multiple Render window snapshots.

SEE MANUAL

ANIMATION

Scene Time Warp

Scene Time Warp

Speed up or slow down the frames in the motion to warp the global time in the scene.

SEE MANUAL
Load Motion Start Position

Load Motion
Start Position

Move the Garment and Avatar to the start position of a Motion when loading Motion files.

SEE MANUAL
Simulation Toolbar Addition

Simulation Toolbar Addition

Utilize the Simulation toolbar freely while Animations are not being recorded in Animation mode.

SEE MANUAL
Transition Animation

Transition
Animation

Delete the Transition Animation from the overall recording.

SEE MANUAL
Library

Library

Preview large thumbnails of image files within the Library.

SEE MANUAL
UI Snapshot

UI
Snapshot

Select between Single or Multiview Snapshots within one condensed window.

SEE MANUAL

KEY FEATURES

CLO Fabric Kit and Emulator

CLO Fabric Kit and Emulator

Accurately virtualize fabrics with the CLO Fabric Kit and Emulator.

Merge

Merge

Merge two patterns into a single pattern.

SEE MANUAL
Steam

Steam

De-wrinkle and even out smaller areas of 3D Garments, just like you would with a garment steamer.

SEE MANUAL
Puckering

Puckering

Apply puckering effects along seams and Topstitches.

SEE MANUAL
History

History

Keep track of tasks performed on a 3D Garment. Revert back to and/or save versions of different '3D States'.

SEE MANUAL
Slash Spread

Slash & Spread

Easily slash and spread patterns.

SEE MANUAL
Change Line Lengths

Change Line Lengths

Make adjustments to patterns by entering specific line lengths.

SEE MANUAL
Intersect & Merge Points

Intersect & Merge Points

Intersect and merge the end points of 2 Internal Lines into a single point.

SEE MANUAL
Symmetric Sewing

Symmetric Sewing

Symmetrically sew symmetrically pasted patterns.

 M to N Sewing

M to N Sewing

Sew 'M' number of segments to 'N' number of segments, and edit them as a group.

SEE MANUAL (SEGMENT)
SEE MANUAL (FREE)
High-Definition (HD) Garment

High-Definition (HD) Garment

Easily enhance the quality of a 3D Garment by applying specific garment, avatar, and simulation properties, all in one go.

SEE MANUAL
Sublayers for Sewing

Sublayers for Sewing

Use Sublayers to dictate the order of sewing lines for areas that have overlapping sewing lines, such as seam allowance and pleats.

SEE MANUAL
Copy / Paste Buttons and Buttonholes

Copy / Paste Buttons and Buttonholes

Copy and paste multiple Buttons and Buttonholes. Specify an interval between copies to keep them evenly spaced.

SEE MANUAL (BUTTON)
SEE MANUAL (BUTTONHOLE)
Hardware Simulation

Hardware Simulation

Enter the weight of hardware pieces to simulate them with 3D Garments.

SEE MANUAL (BUTTON)
SEE MANUAL (OBJ TO GARMENT)
New Render Presets

New Render Presets

New background and lighting options have been added as presets.

Library Thumbnail Preview

Library Thumbnail Preview

Preview the front, side, and back thumbnails of Garment and Project files in the Library Window.

SEE MANUAL

FILE

Garment Descriptions for Project Files

Garment Descriptions for Project Files

Garment Description pages can now be saved and loaded with Project files.

SEE MANUAL
Save Multiview Snapshot Settings

Save Multiview Snapshot Settings

Save and load the size, resolution, and layout settings used for 3D Multiview Snapshots.

SEE MANUAL
MCX File Export

MCX File Export

Animations can now be exported in the MCX format, which can hold larger amounts of animation data.

SEE MANUAL

3D

Style Line Improvements

Style Line Improvements

Change the thickness of Style Lines. Select and hide unnecessary Internal Shapes / Lines when using Style Lines.

SEE MANUAL
Negative Layer Values

Negative Layer Values

Negative values can now be used for the Layer function.

2D

Reference Lines for Rotation

Reference Lines for Rotation

Rotate patterns, as well as Internal Shapes / Lines and Baselines, based on a specific reference line and axis (X, Y).

SEE MANUAL
Offset Multiple Internal Lines

Offset Multiple Internal Lines

Generate multiple Internal Lines while using the Offset as Internal Line function.

SEE MANUAL
Input Values for Round Corners

Input Values for Round Corners

Enter a specific length or radius to generate Round Corners.

SEE MANUAL
Edit Round Corners

Edit Round Corners

Edit the radius of Round Corners.

SEE MANUAL
Relative Axes for Internal Lines

Relative Axes for Internal Lines

Hold down the Ctrl / Command key while moving Internal Lines to display axes (X, Y) relative to the line's midpoint.

SEE MANUAL
Symmetry for Cut and Cut & Sew

Symmetry for Cut and Cut & Sew

Symmetrical patterns now retain symmetry when modified using the Cut and/or Cut & Sew functions.

Cut and Cut & Sew with Trace

Cut and Cut & Sew with Trace

Cut and/or Cut & Sew patterns while using the Trace tool.

SEE MANUAL

MATERIALS

Reset Button Arrangement

Reset Button Arrangement

Reset a Button's arrangement to where it was originally placed in the 3D space.

SEE MANUAL
Select / Move Buttons and Buttonholes

Select / Move Buttons and Buttonholes

Select and/or move multiple Buttons and Buttonholes at the same time.

SEE MANUAL
Sewing Layer Settings

Sewing Layer Settings

The number of sewing layers are now configured after, not before, a Button and/or Buttonhole is added to a 3D Garment.

SEE MANUAL
Add Graphics from Library Window

Add Graphics from Library Window

Add Graphics directly from the Library Window.

SEE MANUAL
Normal Maps for Graphics

Normal Maps for Graphics

Apply Normal Maps to Graphics for a more realistic visualization.

SEE MANUAL

RENDER

Save with Transparent Background

Save with Transparent Background

Save rendered images with a transparent background.

SEE MANUAL

DISPLAY

Shortcuts for Zooming

Shortcuts for Zooming

Zoom in and out of the screen using the + and - keys on your keyboard.

SEE MANUAL
Arrangement Preview

Arrangement Preview

Preview the way patterns will be arranged before selecting an Arrangement Point.

SEE MANUAL
Drag & Drop to Change Background

Drag & Drop to Change Background

Drag and drop image files directly onto the background of the 3D Window to change the 3D Background.

SEE MANUAL
Reset Background

Reset Background

Reset the 3D Background to its default settings.

SEE MANUAL

Program Speed & Usability Improvements

Improvement of Simulation Speed

Improvement of Simulation Speed

Simulation speed has increased by 30%.

Mac Version Enhancements

Mac Version Enhancements

Simulation and rendering speeds have improved by 70% in the Mac version.

Auto Sync

Auto Sync

Any and all changes made in the 2D Pattern window are automatically Synced to the 3D window and two times faster than before.

SEE MANUAL
Multiple Program Windows

Multiple Program Windows

Have multiple CLO projects running at the same time.

Rendering

High-Quality Rendering

High-Quality Rendering

Create and save high-quality Garment images with realistic detail and shadows.

Equipment Support

CLO Fabric Kit + Fabric Emulator

CLO Fabric Kit + Fabric Emulator

Easily virtualize fabrics with the CLO Fabric Kit and Fabric Emulator.

SEE MANUAL

DXF File Improvements

DXF Size Information + Grading

DXF Size Information + Grading

Import DXF patterns with grading and size information to drape each size in the entire size run.

SEE MANUAL
Pattern Annotations

Pattern Annotations

Import DXF patterns and view pattern annotations.

SEE MANUAL
Import DXF Settings Saved

Import DXF Settings Saved

Selected settings for DXF Import are saved.

2d

Cut / Cut & Sew

Cut / Cut & Sew

Create dynamic style lines with the Cut function.

SEE MANUAL
Pleats Folding + Sewing

Pleats Folding + Sewing

Create a variety of pleats with the Pleats Folding and Pleats Sewing tools.

SEE MANUAL
Reference Line

Reference Line

Create lines that can be used to reference the original pattern before embarking on Pattern changes.

SEE MANUAL
Symmetrization

Symmetrization

Apply Symmetric Editing back to Patterns that had Symmetry removed.

SEE MANUAL
Multiple Copy for Inner Shapes,Graphics

Multiple Copy for Inner Shapes,Graphics

SEE MANUAL
Snap to Pattern Outline

Snap to Pattern Outline

Extend Internal Lines by snapping their points to Pattern outlines, as well as snap and add points to the Pattern outline.

SEE MANUAL
Layer Clone (Under)

Layer Clone (Under)

Determine the layer order of patterns before they are cloned.

SEE MANUAL

3d

Style Line Display in 3D

Style Line Display in 3D

Express style lines, silhouette, and garment folds clearly in the 3D window.

SEE MANUAL
Superimpose (Side)

Superimpose (Side)

In addition to Superimpose (Over/Under), use Superimpose (Side) for efficient pattern arrangement.

SEE MANUAL

sewing

Display Differences in Sewing Length

Display Differences in Sewing Length

Display seamlines with differences in Sewing length.

SEE MANUAL
Changes to Sewing Styles

Changes to Sewing Styles

Improvements to the interface of Sewing and Topstitches.

SEE MANUAL (TOPSTITCH)
SEE MANUAL (SEWING)

fabric

Improvements to Editing Textures

Improvements to Editing Textures

Adjust placement and grainlines with the Edit Pattern Texture tool, and edit the texture image with the Edit Fabric Texture tool.

SEE MANUAL (EDIT PATTERN TEXTURE)
SEE MANUAL (EIDT FABRIC TEXTURE)
Thickness as a Fabric Property

Thickness as a Fabric Property

Adjust the thickness of fabrics in the Property Editor.

SEE MANUAL
Duplicate Graphics to Symmetric Patterns

Duplicate Graphics to Symmetric Patterns

Copy and reflect graphics and logos across symmetrically pasted patterns.

SEE MANUAL

materials

Topstitch Normal Map

Topstitch Normal Maps

Apply Normal Maps to Topstitches for realistic visualizations.

SEE MANUAL
Added new Button Presets

Added new Button Presets

Utilize a variety of new Button presets.

Avatar Improvement

Changes to the Avatar Size Interface

Changes to the Avatar Size Interface

Reference the Avatar measurements as you adjust the size in real-time.

SEE MANUAL
Avatar Bounding Volumes + Arrangement Points in the Avatar Editor

Avatar Bounding Volumes + Arrangement Points in the Avatar Editor

View and modify all Avatar related menus in the Avatar Editor.

SEE MANUAL
Display Skeleton

Display Skeleton

Selecting a single Avatar joint now displays the entire joint group for easy and intuitive editing.

SEE MANUAL
Joint Reset

Joint Reset

Reset the Avatar's joints to the way they were before editing.

SEE MANUAL
On/Off Options for Avatar Collision Detection

On/Off Options for Avatar Collision Detection

Deactivate selected Avatars or objects while draping.

SEE MANUAL
Show/Hide Selected Avatars

Show/Hide Selected Avatars

Show and hide selected Avatars or objects.

SEE MANUAL
Save Avatar Data Separately

Save Avatar Data Separately

Save Avatar data separately when multiple Avatars exist within the Workspace.

SEE MANUAL

other

2D Pattern Snapshot (1:1)

2D Pattern Snapshot (1:1)

Save your patterns in their actual size with 2D Patterns (1:1).

SEE MANUAL
Tablet Compatibility

Tablet Compatibility

Utilize a tablet for view control with the Tablet preset.

Add Project

Add Project

Add Garments or Avatars from Project files to the Workspace.

SEE MANUAL

KEY FEATURES

COLORWAY

COLORWAY

Create colorways for individual styles and experiment with color options for various garment components.

SEE MANUAL
COLOR PALETTE & EYEDROPPER

COLOR PALETTE
& EYEDROPPER

Import color palettes created in Adobe® Illustrator® and Photoshop® or create custom palettes. Utilize the Eyedropper tool to pick colors in and out of CLO3D.

SEE MANUAL
print layout image

PRINT LAYOUT

After applying prints in the 2D window, use Print Layout mode to match up prints and determine fabric yield.

SEE MANUAL
high quality snapshot image

HIGH-QUALITY SNAPSHOT

Create high resolution images of the 3D window.

SEE MANUAL
multiview snapshot image

MULTIVIEW SNAPSHOT

Specify the dimensions and image quality while capturing multiple views with the Multiview Snapshot feature.

SEE MANUAL
1:1view image

1:1 VIEW

Utilize the 1:1 View option to display the garment in its actual size in the 3D window.

SEE MANUAL
BOND

BOND

Add partial physical properties to designated areas of a pattern to create bonded qualities.

SEE MANUAL
SKIVE

SKIVE

Reduce or ‘Skive’ the physical property of a fabric in designated areas.

SEE MANUAL
side geometry image

SIDE
GEOMETRY

Apply and adjust the curvature of pattern edges. Express double-sided fabrics as well.

SEE MANUAL
3D LINE LENGTH

3D LINE
LENGTH

Compare the differences between the 2D Line Length and the changes in the 3D Line Length after the garment has been Simulated.

SEE MANUAL
offset as internal line image

OFFSET AS INTERNAL LINE

Input specific measurements to offset patterns and segments as Internal Lines.

SEE MANUAL
sewing line typeturned image

SEWING LINE TYPE
- TURNED

Apply the 'Turned' Sewing Line Type setting in the Property Editor to achieve a folded, tow-ply look.

SEE MANUAL
FOLD ARRANGEMENT

FOLD ARRANGEMENT

Utilize the Fold Arrangement tool to fold seam allowance, collars, and cuffs before Simulation is activated.

SEE MANUAL
DIRECT POSITIONING

DIRECT POSITIONING

Utilize the Direct Positioning tool to easily arrange patterns and OBJs on the Avatar and garment.

SEE MANUAL
BUTTON

BUTTONobt update icon

Create, rotate, and move buttons easily in both the 3D and 2D windows.

SEE MANUAL (POSITION)
SEE MANUAL (ROTATION)
piping image

PIPINGobt update icon

Adjust the length or placement of Piping in the 3D window.

SEE MANUAL (STATUS)
SEE MANUAL (LENGTH)
1:n sewing tool image

1:N
SEWING TOOL

Utilize the new and improved 1:N Sewing Tools to sew multiple seams without View Control restrictions in the Mac version.

SEE MANUAL (SEGMENT)
SEE MANUAL (FREE)
vizoo file compatibility image

VIZOO FILE COMPATIBILITY

Compatibility for Vizoo xTex™ 3D material information (Color, Specular, and Normal Maps).

SEE MANUAL
DXF - ASTM IMPORT EXPORT

DXF - ASTM
IMPORT / EXPORT

In addition to DXF-AAMA, patterns can now be imported and exported in the DXF-ASTM format.

SEE MANUAL
go to top
